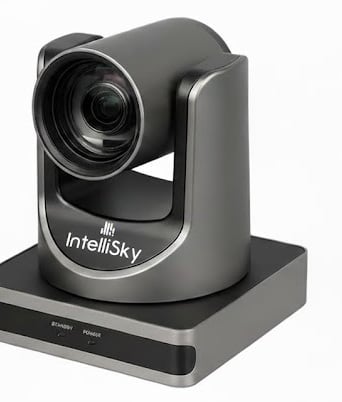

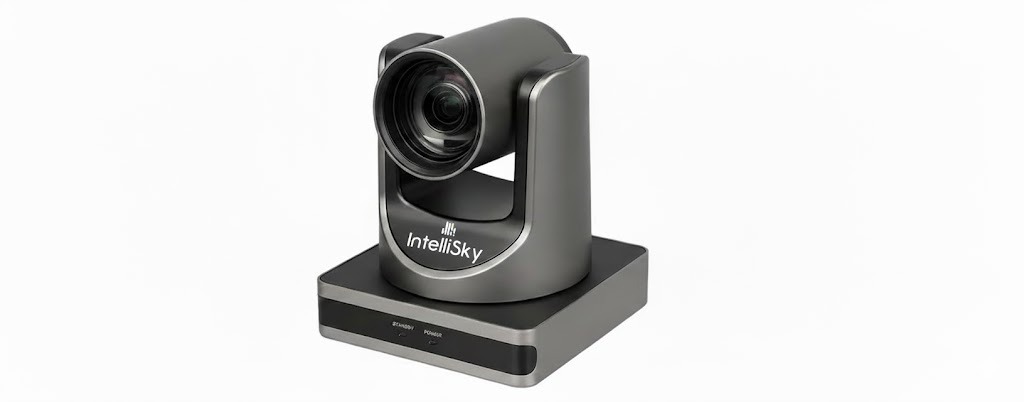

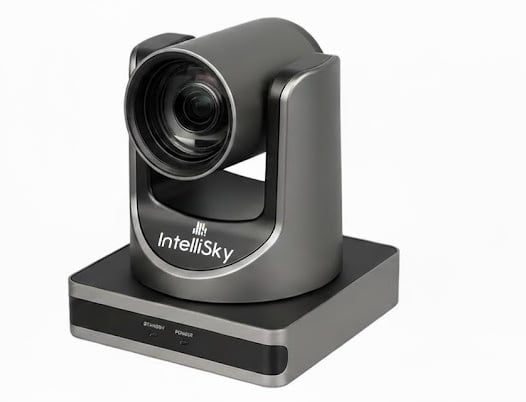

PTZ Camera (Pan–Tilt–Zoom)

Best for:-

Video conferencing, Boardrooms, webinars, Broadcasting,

Smart classrooms, lecture recording, hybrid learning,Live streaming.

1. 4K Ultra HD Image:

Built with SONY high quality CMOS sensor, ,with resolution up to 4K@60fps.


2. Optical Zoom Lens

12x optical zoom lens, with 80.4° FOV without distortion.12X optical zoom 80.4°wide-angle lens (UV430E0), 25X optical zoom 59.2°wide-angle lens (UV430E2), and 31X optical zoom 59° wide-angle lens (UV430E3)


3. Leading Auto Focus Technology

Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.


4. Low Noise and High SNR

Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.


5. Multiple video output interfaces

With video 4k output from HIMI, USB2.0 and LAN at the same time.


6. Multiple Audio/Video Compression Standard

Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB2.0 port , support AAC audio compression over A-in port. LAN interface supports H.264/H.265 video compression, USB2.0 interface supports MJPG、H264、YUY2、NV12、H265; A-IN interface supports AAC audio compression coding


7. Multiple Network Protocol
Support ONVIF, GB/T28181, RTSP, RTMP protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode; Support network full command VISCA control protocol.

8. Multiple Presets
Support up to 255 presets (10 presets by remote controller)

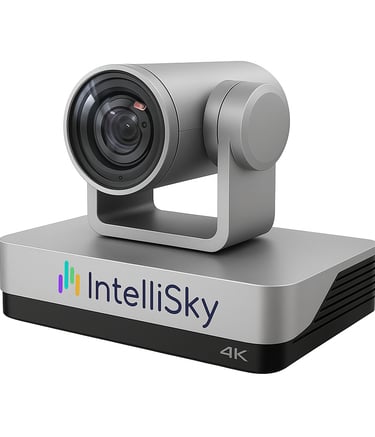

PTZ Camera (Pan–Tilt–Zoom)

Best for:-

Video conferencing, Boardrooms, webinars, Broadcasting,

Smart classrooms, lecture recording, hybrid learning,Live streaming.

4K ultra-high-definition image: using 8.5 million pixel high-quality SONY CMOS image sensor, the maximum resolution can reach 4K (3840×2160), and the 4K output frame rate can reach up to 30 frames per second.

Optical zoom lens: 12x 80.5° optical zoom lens.

Leading auto-focusing technology: The advanced auto-focusing algorithm enables the lens to complete auto-focusing quickly, accurately and stably.

Low noise and high signal-to-noise ratio: The low-noise CMOS effectively ensures the ultra-high signal-to-noise ratio of the camera video. Adopt advanced 2D and 3D noise reduction technology to further reduce noise while ensuring image clarity.

A variety of video output interfaces: support HDMI, USB3.0, wired LAN interface; support POE power supply, USB3.0 supports dual stream.

A variety of audio and video compression standards: support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats, MJPEG, H.264, H.265 support up to 3840 × 2160 resolution 30 frames / second compression; support AAC , MP3, G.711A audio compression.

Audio input interface: support AAC, MP3, G.711A audio coding, AAC, MP3 coding supports 16000, 32000, 44100, 48000 sampling frequency.

Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols; support RTMP push mode, easily link streaming media servers (Wowza, FMS); support RTP multicast mode .

Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocols, and support automatic identification protocols.

Low-power sleep function: supports low-power sleep/wake-up, and the power consumption during sleep is less than 400mW.

AI binocular humanoid tracking: Built-in high-speed processor and exclusive advanced image processing and analysis algorithms, users can choose real-time tracking and regional tracking according to the usage environment.

Intelligent voice positioning and tracking: Built-in 6 omnidirectional microphone arrays, intelligent voice positioning algorithm, can locate the position of the speaker in real time, and can set voice tracking on/off

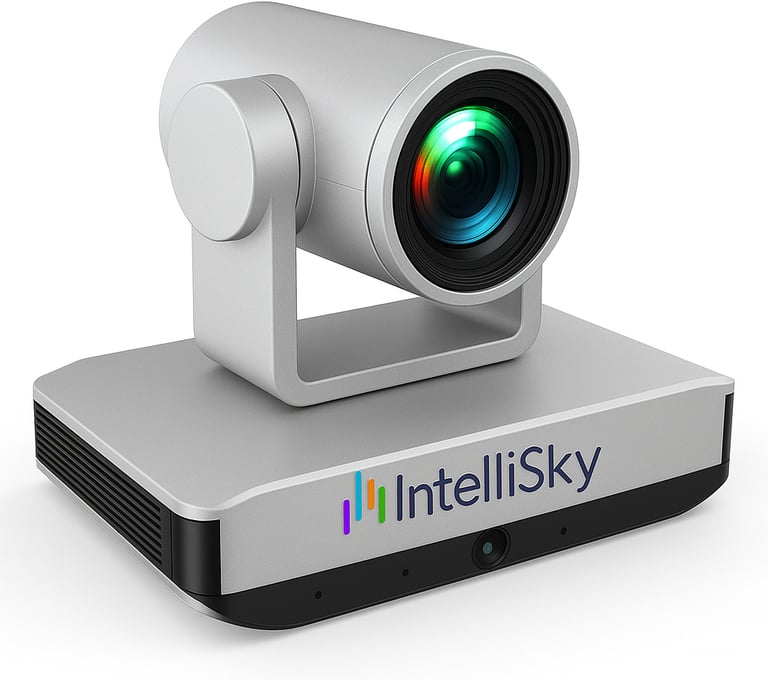

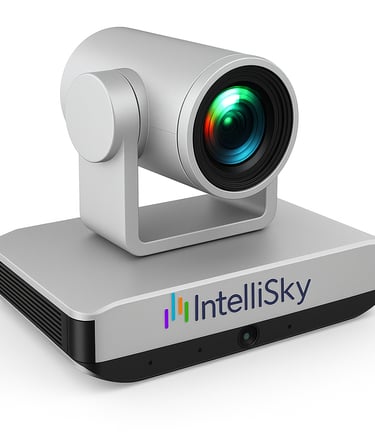

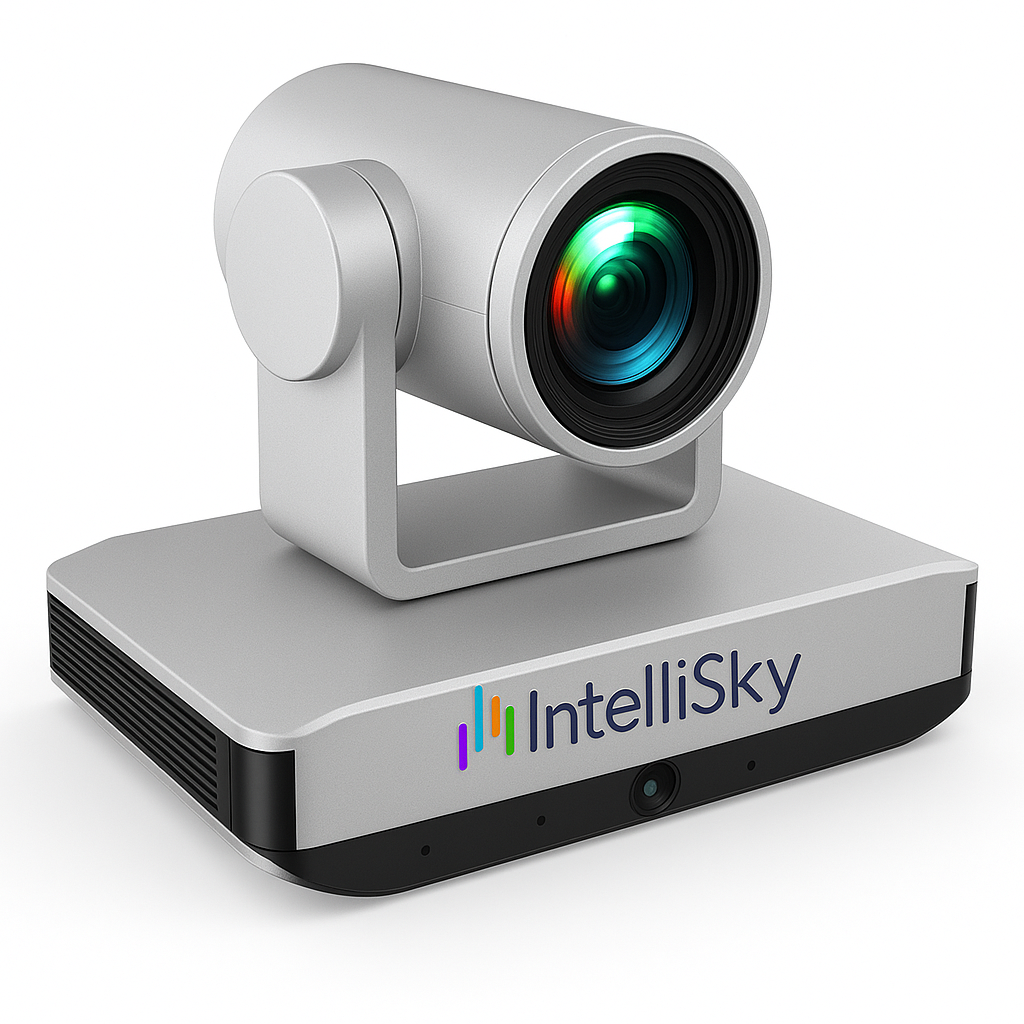

PTZ Camera (Pan–Tilt–Zoom)

Best for:-

Video conferencing, Boardrooms, webinars, Broadcasting,

Smart classrooms, lecture recording, hybrid learning,Live streaming.

4K Video Conferencing PTZ Camera
It supports 12X Optical and 16X Digital Zoom
AI Tracking
This camera is equiped with built-in video AI algorithms, that can recognize the positions of the participants in the conference roomand automatically adjust the camera angle to obtain the best composition and framing of the image, it can also be set to trackand follow a specific subject as they move during the conference.
Compatibility
Compatible with most video conferencing applications like Microsoft Team, Zoom, CiscoWebex and more
Auto framing and Humanoid Tracking
It is built with AI-power Auto framing which can automatically frame all people in the meeting and make them at the middle of the video image.

Key Features

  • Remote control (via joystick, software, or app)

  • Wide field of view with flexible movement

  • Optical & digital zoom (10x–30x or more)

  • Preset positions (can store & recall angles instantly)

  • Connectivity: HDMI, SDI, USB, IP (PoE for power + control)

  • Auto-tracking (advanced models follow speaker automatically)

  • Silent, smooth motor movements
